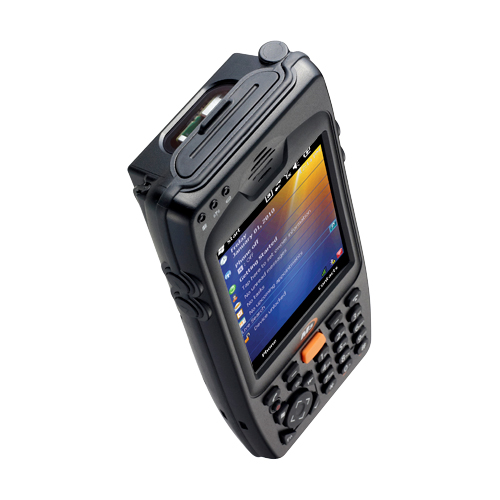

Alpha Numeric
QWERTY
close

logo

close
M3 OX10 (1G)
Fully Rugged Industrial PDA
  • - 1 GHz
    - Windows Embedded Handheld 6.5/ Windows Embedded CE 6.0
    - 1D / 2D / RFID
    - HF(13.56MHz), UHF(868~956MHz) RFID
    - 5.0M Pixels Auto Focus Camera
    - Bluetooth Class II, V2.1 with EDR
    - WLAN IEEE 802.11 a/b/g/n
    - Smart Battery

  • tabbutton1

    • Windows Embedded Handheld 6.5
      Windows Embedded Handheld 6.5 operating system which is familiar to handheld computer users ensuring easy integration and intuitive operation.
    • 1GHz
      Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access.
    • 1D, 2D, RFID
      Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
    • 5.0M Pixels AF Camera
      High resolution and auto focused functionality capture clear images of product and/or documentation.

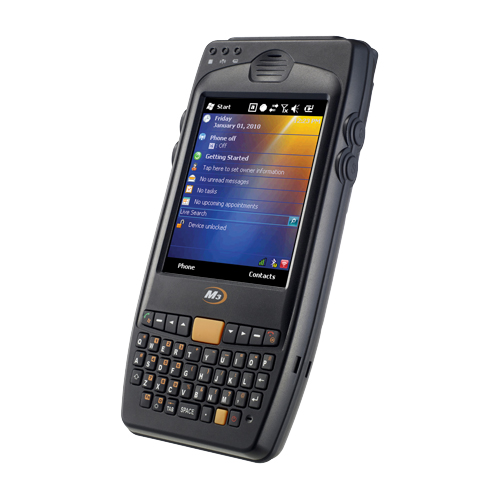

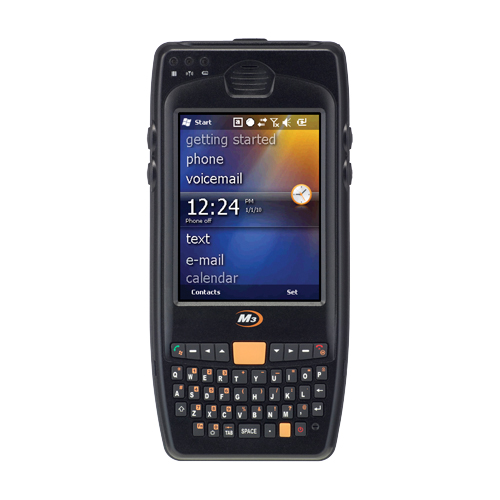

    • Multi-function QWERTY keypad
      Multi functional keys of QWERTY keypad are designed for versatile performance. As hot keys, these are going to make the direct access be possible and increase user's working speed.

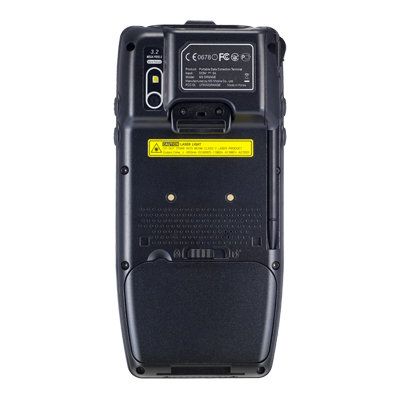

    • Smart Battery (Li-Ion 3.7V 3,300mA)
      M3 OX10 Family's smart battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, is large capacity is suitable for long time shifts
    • Slim & Light
      M3 OX10 Family is a slim and light but rugged. It can be used for ticketing and/or asset management wherever the mobile device is needed.
    • Endurance for temperature
      M3 OX10 Family can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 70 degree. It will guarantee the normal function at any temperature of working environment.
    • IP 65 Sealing, 1.5m Drop
      M3 OX10 Family is suitable to use in a tough environment withstands drops from 1.5m and protects against dust and water.
    • Solutions
      Terminal Emulation : Wavelink, Softogo, Naurtech
      Mobile Management : SAP, Wavelink, Soti
  • tabbutton1

      Physical Characteristics
      DIMENSION (W x H x D)
      Millimeters 78.6 x 165.5 x 24.9
      78.6 x 165.5 x 40.2 (with HF)
      78.6 x 165.5 x 38.9 (with UHF)
      Inches 3.1 x 6.5 x 0.9
      3.1 x 6.5 x 1.58 (with HF)
      3.1 x 6.5 x 1.53 (with UHF)
      WEIGHT (incl. battery)
      Grams 332
      362 (with HF)
      389 (with UHF)
      Ounces 11.7
      12.7 (with HF)
      13.7 (with UHF)
      DISPLAY
      Size 3.5"
      Type VGA TFT LCD / QVGA
      Pixels 480 X 640 (plus) / 240 x 320
      BATTERY
      Type Smart Battery
      Cell Lithium-ion
      Power 3.7 V, 3,300 mA
      Performance Characteristics
      MULTI-PROCESSOR
      CPU 1GHz
      Radio
      OS
      Windows Embedded Handheld 6.5
      MEMORY
      RAM 512MB
      ROM 4GB
      Card Slot Micro SD, up to 32 GB
      USB INTERFACE
      Host 1.1
      Client 2.0
      User Environment
      TEMPERATURE
      Operating -20 to 60 ℃ / -4 to 140 ℉
      Storing -30 to 70 ℃ / -22 to 158 ℉
      HUMIDITY
      93% non-condensing
      Tumble Test
      1,000 1.6ft./0.5m tumbles (2,000 drops)
      Drop Test
      1.5 m / 5 ft
      IP Rating
      IP65
      Wireless Radio Options
      WWAN
      2G Network
      (GSM/GPRS/EDGE)
      850/900/1800/1900 MHz
      2G Network
      (CDMA 1x/EVDO)
      3G Network
      (UMTS/HSPA+)
      800/850/AWS/1900/2100 MHz
      WLAN
      Standard IEEE 802.11
      Bandwidth a/b/g/n,
      Security WEP, WPA, WPA2, TKIP, AES, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP- TLS, PEAP-MSCHAPv2, LEAP, CCXv4
      BLUETOOTH
      Class Class II
      Version 2.1 (with EDR)
      RFID
      Frequency HF: 13.56 MHz
      UHF: 868 ~ 956 MHz
      Standard HF: ISO 14443 A/B, ISO 15693, ISO 18000-3, I-CODE
      UHF: EPC C1 G2
      GPS
      AGPS, GLONASS
      General Options
      SCANNER
      1D O
      2D O
      Long range
      CAMERA
      Pixels 5.0 M
      Focus Auto Focus
      KEYPAD
      Alpha-Numeric 31 key
      Qwerty 50 key
      Azerty 50 key

      * The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
