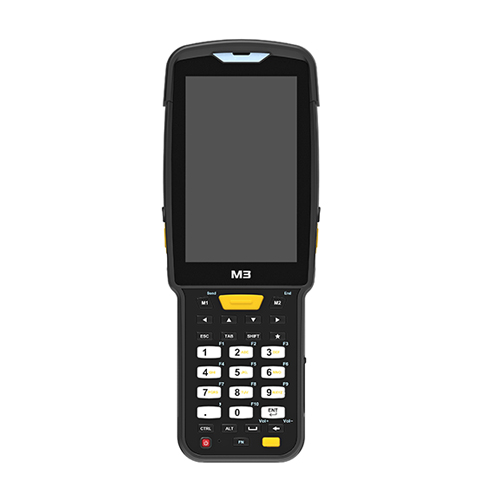

Lightweight and Rugged Mobile Handheld Computer
  • - Android 10 GMS
    - 2.2 GHz Octa core CPU
    - 4 / 64 GB
    - 2D imager / Long range scanner
    - IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/w
    - Wireless WAN Data AND VOICE COMMUNICATIONS
    - IP67 Sealing, 1.8m Drop

  • tabbutton1






  • tabbutton1

      Physical Characteristics
      DIMENSION (W x H x D)
      Millimeters 74 * 197.2 * 35.3
      Inches 2.91 * 7.76 * 1.38
      WEIGHT (incl. battery)
      Grams 369 (2D Scanner with Standard battery)
      Ounces 13 (2D Scanner with Standard battery)
      DISPLAY
      Size 4"
      Type WVGA
      Pixels 480 x 800
      BATTERY
      Type Standard / Extended
      Cell Li-ion
      Power 3.6V, 2,600 mAh / 6,700 mAh
      Performance Characteristics
      MULTI-PROCESSOR
      CPU 2.2 GHz Octa-core
      Radio
      OS
      Android 10 GMS
      MEMORY
      RAM 4 GB
      ROM 64 GB
      Card Slot 2 SIM, Micro SD
      USB INTERFACE
      Host USB 2.0 High Speed OTG
      Client USB 2.0 High Speed OTG
      User Environment
      TEMPERATURE
      Operating -20 ℃ to 60 ℃ (-4 °F to 140 °F)
      Storing -30 ℃ to 80 ℃ (-22 °F to 176 °F)
      HUMIDITY
      5% to 95% RH (Non-condensing)
      Tumble Test
      -
      Drop Test
      1.8 m
      IP Rating
      IP65
      Wireless Radio Options
      WWAN
      2G Network
      (GSM/GPRS/EDGE)
      900/1800 (3/8)
      3G Network
      (UMTS/HSPA+)
      3G: 850/900/2100(1/5/8), 4G LTE: TDD-LTE : B38, B40, B41 FDD-LTE : B1, B3, B5, B7, B8, B20
      WLAN
      Standard IEEE 802.11
      Bandwidth a/b/g/n/ac/d/e/h/i/k/r/w
      Security IPv4, IPv6, MU-MIMO
      BLUETOOTH
      Class Class 2
      Version v4.1
      RFID
      Frequency NFC (13.56MHz)
      Standard ISO 14443 A / B, ISO 15693
      GPS
      Autonomous, Concurrent GPS; GLONASS; Gallileo; Beidou, and A-GPS
      General Options
      SCANNER
      1D
      2D O
      Long range O
      CAMERA
      Pixels 16 MP (rear)
      Focus auto-focus (AF), PDAF
      KEYPAD
      Alpha-Numeric Numeric (30 key), Function Numeric (42 key), Alpha Numeric (51 key)
      Qwerty
      Azerty

      * The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
