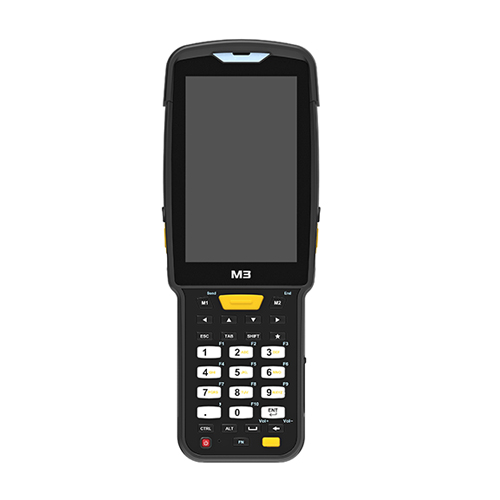

- M3 US20W
- Lightweight and Rugged Wi-Fi Only Mobile Handheld Computer
-
- - Android 10 GMS
- 2.2 GHz Octa core CPU
- 4 / 64 GB
- 2D imager / Long range scanner
- IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/w
- IP67 Sealing, 1.8m Drop
- - Android 10 GMS
-
-
tabbutton1
-
tabbutton1
- Physical Characteristics
-
DIMENSION (W x H x D) Millimeters 74 * 197.2 * 35.3 Inches 2.91 * 7.76 * 1.38 WEIGHT (incl. battery) Grams 369 (2D Scanner with Standard battery) Ounces 13 (2D Scanner with Standard battery) DISPLAY Size 4" Type WVGA Pixels 480 x 800 BATTERY Type Standard / Extended Cell Li-ion Power 3.6V, 2600mAh / 6700mAh - Performance Characteristics
-
MULTI-PROCESSOR CPU 2.2 GHz Octa-core Radio OS Android 10 GMS MEMORY RAM 4 GB ROM 64 GB Card Slot 2 SIM, Micro SD USB INTERFACE Host USB 2.0 High Speed OTG Client USB 2.0 High Speed OTG - User Environment
-
TEMPERATURE Operating -20 ℃ to 60 ℃ (-4 °F to 140 °F) Storing -30 ℃ to 80 ℃ (-22 °F to 176 °F) HUMIDITY 5% to 95% RH (Non-condensing) Tumble Test - Drop Test 1.8 m IP Rating IP65 - Wireless Radio Options
-
WWAN 2G Network
(GSM/GPRS/EDGE)- 2G Network
(CDMA 1x/EVDO)- 3G Network
(UMTS/HSPA+)- WLAN Standard IEEE 802.11 Bandwidth a/b/g/n/ac/d/e/h/i/k/r/w Security IPv4, IPv6, MU-MIMO BLUETOOTH Class Class 2 Version v4.1 RFID Frequency NFC (13.56MHz) Standard ISO 14443 A / B, ISO 15693 GPS - - General Options
-
SCANNER 1D 2D O Long range O CAMERA Pixels 16 MP (rear) Focus auto-focus (AF), PDAF KEYPAD Alpha-Numeric Numeric (30 key), Function Numeric (42 key), Alpha Numeric (51 key) Qwerty Azerty
* The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
-
