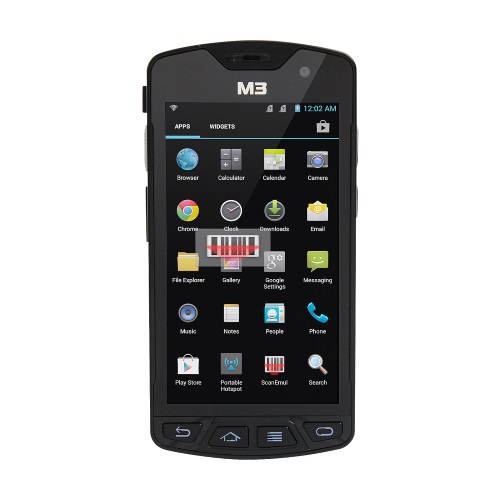

M3 SM10
Rugged full touch screen with Android
  • - 1.2GHz Quadcore CPU
    - Android 4.3 Jelly Bean
    - Extended Battery 6,150mAh
    - 1D / 2D scanner
    - 5" full touch HD TFT LCD (Gorilla Glass 3)
    - IEEE 802.11 a/b/g/n
    - IP65 Sealing, 1.8m Drop (with protective boot)

  • tabbutton1

    • Android 4.3 Jelly Bean
      Accessible to various accessories, with Android 4.3 Jelly Bean capable of applying Bluetooth Smart and minimizing power consumption.
    • 1.2GHz Quadcore
      Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access.
    • 5inch full touch HD TFT LCD (Gorilla Glass 3)
      Legible through 5 inch full-touch screen, easy to use even with wearing gloves, resistant to scratch and rugged applying Gorilla Glass 3.
    • 1D, 2D Scanner
      Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
    • 8.0MP (rear) / 2.0MP (front) auto focus camera
      High resolution and auto focused functionality capture clear images of product and/or documentation.
    • Battery (Li-Ion 3.8V 6,150mAh / 4,100mAh)
      M3 SM10 battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts.
    • Slim & Light
      M3 SM10 is a slim and light but rugged PDA with optional RFID reader. It can be used for ticketing and/or asset management wherever the mobile device is needed.
    • Endurance for temperature
      M3 SM10 can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 80 degree. It will guarantee the normal function at any temperature of working environment.
    • IP65 Sealing / 1.8m drop (with protective boot)
      M3 SM10 is suitable to use in a tough environment withstands drops from 1.8m and protects against dust and water.

      Drop rate with Standard Battery 4,100 mAh 1.8m with Boot

      Drop rate with Extended Battery 6,150 mAh 1.8m with Boot

    • User-centred design
      The user-centred design combines with great performance to deliver into the most harsh and hostile work environment's.

  • tabbutton1

      Physical Characteristics
      DIMENSION (W x H x D)
      Millimeters 76.4 x 154.8 x 21.6
      Inches 3 x 6.09 x 0.85
      WEIGHT (incl. battery)
      Grams 280 (including st`d battery)
      Ounces 9.8
      DISPLAY
      Size 5`"
      Type HD TFT LCD
      Pixels 720 x 1280
      BATTERY
      Type Standard / Extended
      Cell Li-ion
      Power 3.8 V 4,100mAh / 3.8 V 6,150mAh
      Performance Characteristics
      MULTI-PROCESSOR
      CPU 1.2 GHz Quadcore
      Radio
      OS
      Android 4.3 Jelly Bean
      MEMORY
      RAM 1GB
      ROM 8GB
      Card Slot Micro SD
      INTERFACE
      Client only Micro USB
      Sensors
      G-Sensor, Proximity Sensor, Motion Sensor, Light Sensor
      User Environment
      TEMPERATURE
      Operating -20 to 60 ℃
      Storing -30 to 80 ℃
      HUMIDITY
      95％ non-condensing
      Tumble Test
      Drop Test
      1.2m / 1.8 m (with protective boot)
      IP Rating
      IP65 (with protective boot)
      Wireless Radio Options
      WWAN
      2G Network
      (GSM/GPRS/EDGE)      		 850/900/1800/1900 MHz
      2G Network
      (CDMA 1x/EVDO)
      3G Network
      (UMTS/HSPA+)      		 800/2100 MHz
      WLAN
      Standard IEEE 802.11
      Bandwidth a/b/g/n
      Security
      BLUETOOTH
      Class Class II
      Version 4.0 LE
      RFID
      Frequency
      Standard
      GPS
      A-GPS, GLONASS
      General Options
      SCANNER
      1D O
      2D O
      Long range
      CAMERA
      Pixels 2.0MP (Front)
      8.0MP (Rear)
      Focus Auto Focus
      KEYPAD
      Alpha-Numeric
      Qwerty
      Azerty

      * The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
