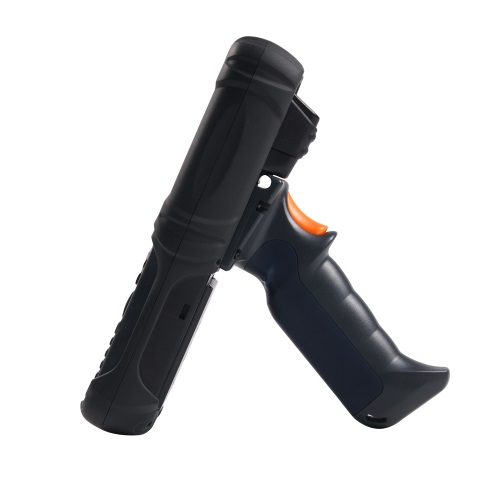

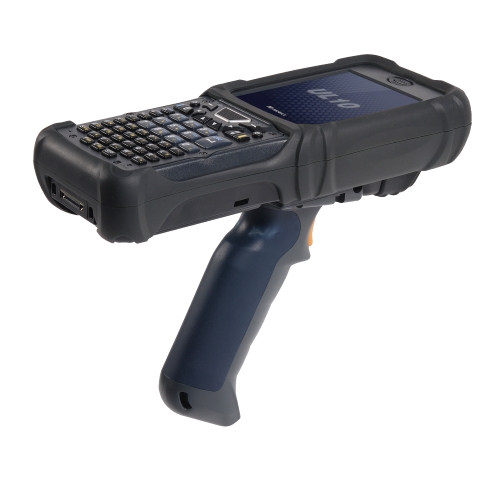

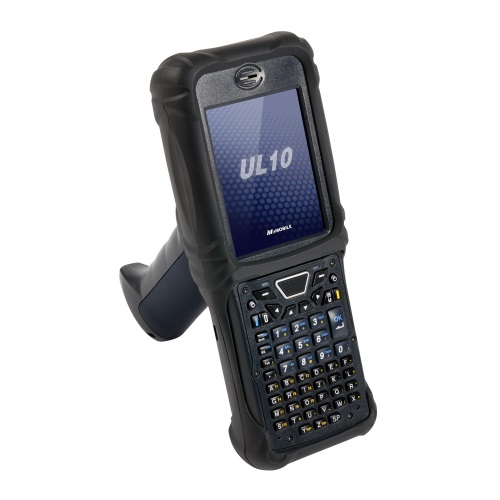

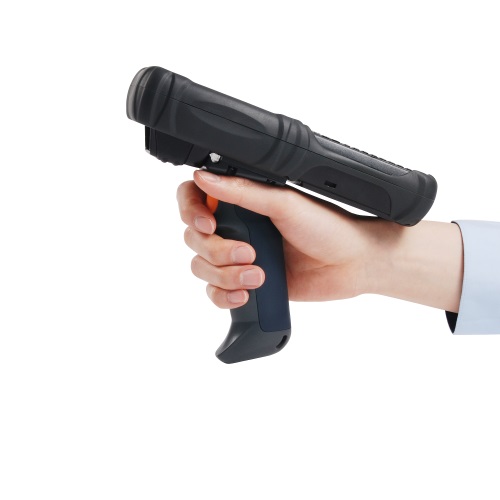

M3 UL10 with pistol grip
close

logo

close

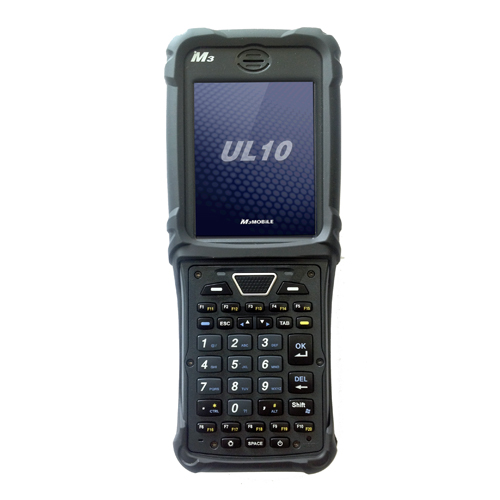

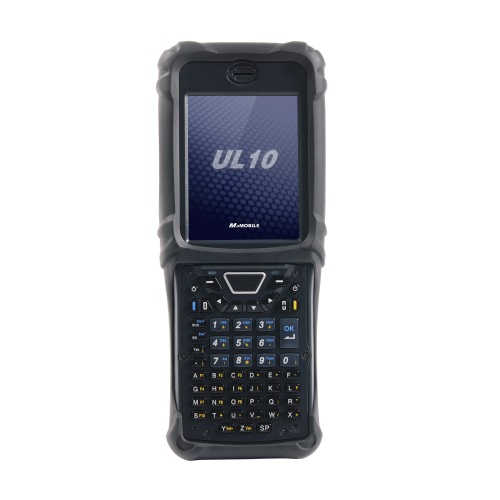

M3 UL10
The exclusive handheld for warehouse management
  • - 833 MHz (Cortex-A8)
    - Windows CE 6.0
    - 1D / 2D / Long-Range Scanner
    - VGA/QVGA Blanview LCD
    - Bluetooth Class II, ver.2.0 with EDR
    - Replaceable Keypads (55 keys,37 keys)
    - IEEE 802.11 a/b/g/n
    - IP65 Sealing, 1.8m Drop

  • tabbutton1

    • Windows CE 6.0
      Windows CE 6.0 operating system which is familiar to handheld computer users ensuring easy integration and intuitive operation.
    • Cortex-A8 833MHz
      Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access.
    • VGA / QVGA Blanview display (Optional)
      With Blanview LCD, M3 UL10 features a clear colour display that is highly visible both indoors and outdoors.
    • 1D or 2D or Long range(2D)
      Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
    • Keypads (55keys and 37keys options)
      Swappable keypads (37keys or 55 keys) are built for warehouse environment and feature large buttons for ease of use with gloved hands.
    • Battery (Li-Polymer 3.7V 4,500mA)
      M3 UL10's smart battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts.
    • Slim & Light
      M3 UL10 is a slim and light but rugged PDA with optional RFID reader. It can be used for ticketing and/or asset management wherever the mobile device is needed.
    • Endurance for temperature
      M3 UL10 can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 80 degree. It will guarantee the normal function at any temperature of working environment.
    • IP65 sealing, 1.8m drop
      M3 UL10 is suitable to use in a tough environment withstands drops from 1.8m and protects against dust and water.

  • tabbutton1

      Physical Characteristics
      DIMENSION (W x H x D)
      Millimeters 73 x 209 x 36.3
      Inches 2.8 x 8.2 x 1.4
      WEIGHT (incl. battery)
      Grams 623
      Ounces 22
      DISPLAY
      Size 3.5`"
      Type VGA/QVGA Blanview LCD
      Pixels 480x640 / 240x320
      BATTERY
      Type Smart battery
      Cell Li-Polymer
      Power 3.7V 4,500mA
      Performance Characteristics
      MULTI-PROCESSOR
      CPU 833 MHz
      Radio -
      OS
      -
      Windows CE 6.0
      MEMORY
      RAM 256MB
      ROM 1GB
      Card Slot Micro SD (up to 32GB)
      USB INTERFACE
      Host 1.1(Full Speed)
      Client 2.0(Full Speed)
      User Environment
      TEMPERATURE
      Operating - 20 to 60°C / - 4 to 140°F
      Storing - 30 to 80°C / - 22 to 176°F
      HUMIDITY
      95 ％ non-condensing
      Tumble Test
      2,000 1.6ft / 0.5m tumbles (4,000 drops)
      Drop Test
      1.8 m / 6.6ft
      IP Rating
      IP65
      Wireless Radio Options
      WWAN
      2G Network
      (GSM/GPRS/EDGE)      		 -
      2G Network
      (CDMA 1x/EVDO)      		 -
      3G Network
      (UMTS/HSPA+)      		 800/850/AWS/1900/2100 MHz
      WLAN
      Standard IEEE 802.11
      Bandwidth a/b/g/n
      Security WEP, WPA, WPA2, TKIP, AES, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-TLS, PEAP-MSCHAPv2, LEAP, CCXv4
      BLUETOOTH
      Class Class II
      Version 2.0 (with EDR)
      RFID
      Frequency -
      Standard -
      GPS
      A-GPS
      General Options
      SCANNER
      1D O
      2D O
      Long range O (2D)
      CAMERA
      Pixels 3.0 M
      Focus Auto Focus
      KEYPAD
      Alpha-Numeric 37 keys
      Qwerty 55 keys
      Azerty -

      * The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
