M3 BLACK

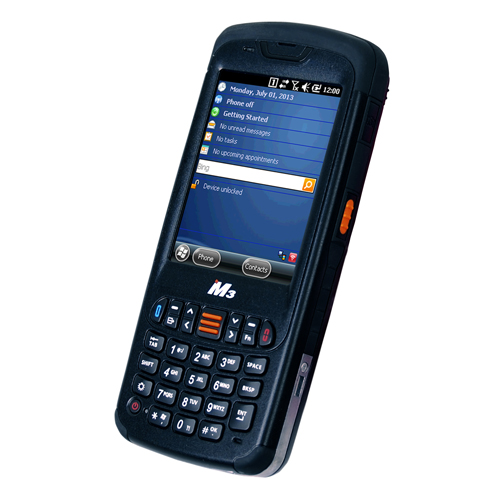

New Premier Mobile Computer
  • - 1GHz CPU
    - Windows Embedded Handheld 6.5
    - IP 65 Sealing, 2.0m Drop
    - IEEE 802.11 a/b/g/n
    - 5.0M Pixels Auto Focus Camera
    - 3.8G HSPA+ Communication
    - 1D Laser, 2D Imager

  • tabbutton1

    • Windows Embedded Handheld 6.5 / Windows CE 6.0
      Windows Embedded Handheld 6.5 / Windows CE 6.0 operating system which is familiar to handheld computer users ensuring easy integration and intuitive operation.
    • 1GHz CPU
      Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access.
    • 1D, 2D Scanner
      Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
    • 5.0MP AF Camera
      High resolution and auto focused functionality capture clear images of product and/or documentation.
    • Battery (Li-Polymer 3.7V 3,400mAh / 5,100mAh)
      M3 BLACK battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts.
    • Scan button
      Small bumps on the scan buttons of front and side enables users to recognize and scan without a glance which reduces actual amount of time and increases efficiency.
    • Slim & Light
      M3 BLACK is a slim and light but rugged PDA with optional RFID reader. It can be used for ticketing and/or asset management wherever the mobile device is needed.
    • Endurance for temperature
      M3 BLACK can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 80 degree. It will guarantee the normal function at any temperature of working environment.
    • IP 65 Sealing, 2.0m Drop
      M3 BLACK is suitable to use in a tough environment withstands drops from 2.0m and protects against dust and water.
    • User-centred design
      The user-centred design combines with great performance to deliver into the most harsh and hostile work environment's.
    • Solutions
      Terminal Emulation : Wavelink, Softogo, Naurtech
      Mobile Management : SAP, Wavelink, Soti
  • tabbutton1

      Physical Characteristics
      DIMENSION (W x H x D)
      Millimeters 75.3 x 165.8 x 26
      Inches 2.96 x 6.52 x 1.02
      WEIGHT (incl. battery)
      Grams 322 (with Standard BAT)
      Ounces 11.7
      DISPLAY
      Size 3.5"
      Type VGA TFT LCD / QVGA
      Pixels 480 x 640 / 240 x 320
      BATTERY
      Type Smart Battery
      Cell Lithium-Polymer
      Power 3.7V 3,400mA / 5,100mA
      Performance Characteristics
      MULTI-PROCESSOR
      CPU 1GHz
      Radio
      OS
      Windows Embedded Handheld 6.5
      Windows CE 6.0
      MEMORY
      RAM 512MB
      ROM 8GB
      Card Slot Micro SD
      USB INTERFACE
      Host 2.0 High Speed
      Client 2.0 High Speed
      Sensors
      Light Sensor, Gyro Sensor
      User Environment
      TEMPERATURE
      Operating -20 to 60 ℃ / -4 to 140 ℉
      Storing -30 to 80 ℃ / -22 to 176 ℉
      HUMIDITY
      95% non-condensing
      Tumble Test
      2,000 1.6fft / 0.5m tumbles (4,000 drops)
      Drop Test
      2.0 m / 6.6 ft.
      IP Rating
      IP65
      Wireless Radio Options
      WWAN
      2G Network
      (CDMA 1x/EVDO)
      3G Network
      (UMTS/HSPA+)
      800/850/AWS/1900/2100 MHz
      WLAN
      Standard IEEE 802.11
      Bandwidth a/b/g/n
      Security WEP, WPA, WPA2, TKIP, AES, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP- TLS, PEAP-MSCHAPv2, LEAP, CCXv4
      BLUETOOTH
      Class Class II
      Version 2.0 (with EDR)
      RFID
      Frequency
      Standard
      GPS
      A-GPS, GLONASS
      General Options
      SCANNER
      1D O
      2D O
      Long range
      CAMERA
      Pixels 5.0M
      Focus Auto Focus
      KEYPAD
      Alpha-Numeric 34 key
      Qwerty 53 key
      Azerty

      * The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
