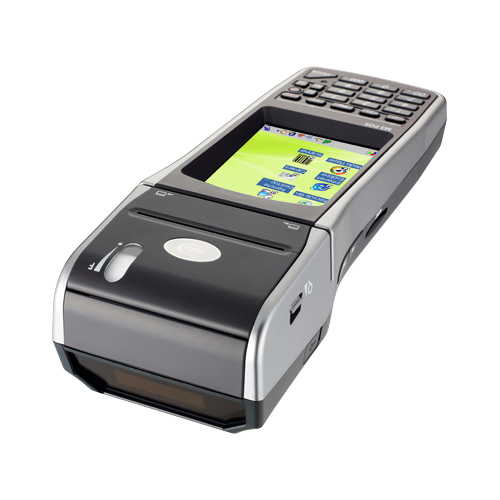

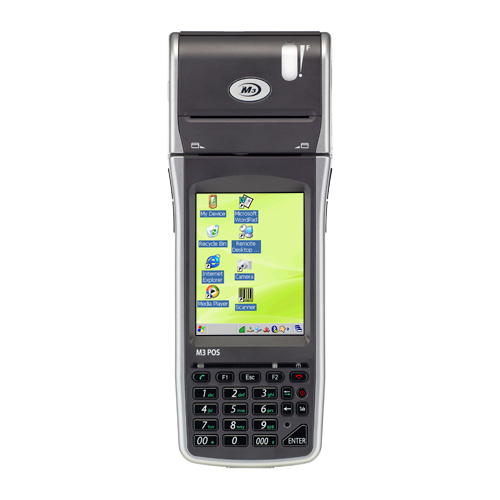

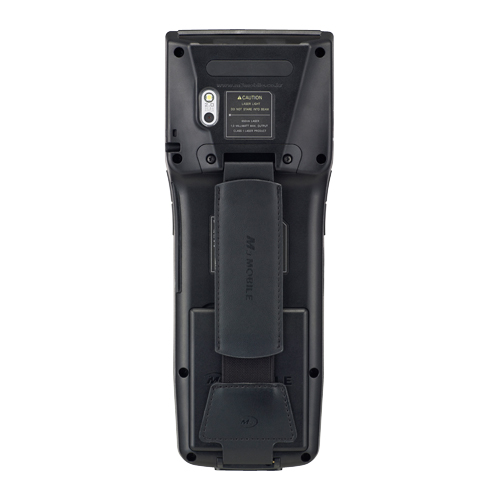

M3 POS



Alpha Numeric




close
logo
close
- M3 POS
- Simple but powerful payment system
-
- - PXA-320 806 MHz
- Windows CE 5.0
- 1D / 2D Scanner
- 2.0M Pixel Camera
- Integrated 13.56 MHz RFID Reader
- Bluetooth Class II, v2.0 with EDR
- WLAN IEEE 802.11 b/g
- Smart Battery
- - PXA-320 806 MHz
-
tabbutton1
-
- Windows CE 5.0
- Windows CE 5.0 operating system which is familiar to handheld computer users ensuring easy integration and intuitive operation.
-
- Marvell PXA-320 806MHz
- Powerful CPU speed with “High-Tier” guarantees faster graphic process and memory access.
-
- 1D, 2D, RFID
- Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
-
- 2.0M Pixels AF Camera
- High resolution and auto focused functionality capture clear images of product and/or documentation.
-
- Battery (Li-Polymer 7.4V 2,250mA)
- M3 POS's smart battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts.
-
- Payment
- MSR, IC card reader, RFID reader enable M3 POS to read various credit cards and EMV Level 1,2 certification enhances its payment feature.
-
- Built-in Printer
- 2" thermal printer can be used not only for the receipt purpose but also as image note printer to suite your application.
-
- Endurance for temperature
- M3 POS can be operated within -20 degree to 50 degree and its storage temperature is -20 degree to 50 degree. It will guarantee the normal function at any temperature of working environment.
-
-
tabbutton1
- Physical Characteristics
-
DIMENSION (W x H x D) Millimeters Head 85 x 224 x 56.3 mm
Grip 77 x 224 x 35.9Inches Head 3.3 x 8.8 x 2.2 inch
Grp 3.0 x 8.8 x 1.4WEIGHT (incl. battery) Grams 540 Ounces 19.0 DISPLAY Size 3.5" Type QVGA TFT LCD Pixels 240 X 320 BATTERY Type Smart Battery Cell Li-Polymer Power 7.4V 2,250 mA - Performance Characteristics
-
MULTI-PROCESSOR CPU 806 MHz Radio ARM9 series OS Windows CE 5.0 MEMORY RAM 128 MB ROM 256 MB, up to 1 GB Card Slot SD, up to 32 GB USB INTERFACE Host 1.1 Client 1.1 - User Environment
-
TEMPERATURE Operating -20 to 50 ℃ / -4 to 122 ℉ Storing -20 to 50 ℃ / -4 to 122 ℉ HUMIDITY 95% non-condensing Tumble Test Drop Test 1.2 m / 4 ft. IP Rating - Wireless Radio Options
-
WWAN 2G Network
(GSM/GPRS/EDGE)- 2G Network
(CDMA 1x/EVDO)- 3G Network
(UMTS/HSPA+)- WLAN Standard IEEE 802.11 Bandwidth a/b/g Security WEP 64, 128bit
WPA, WPA_PSK (TKIP,AES)
WPA2, WPA2_PSK (TKIP,AES)BLUETOOTH Class Class II Version 2.0 RFID Frequency HF: 13.56 MHz Standard ISO 14443 A/B, ISO 15693, Mifare GPS AGPS - Settlement Information
-
MSR Track 1,2,3 IC Card Standard ISO 7816 Slot 4 SAMs Printer Size 2 inch Thermal Printer Max. Speed 100 mm/sec Max. Paper width 30mm Max. Paper length 9.5m - General Options
-
SCANNER 1D O 2D O Long range CAMERA Pixels 2.0 M Focus Fixed Focus KEYPAD Alpha-Numeric 26 key Qwerty Azerty
* The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
-
