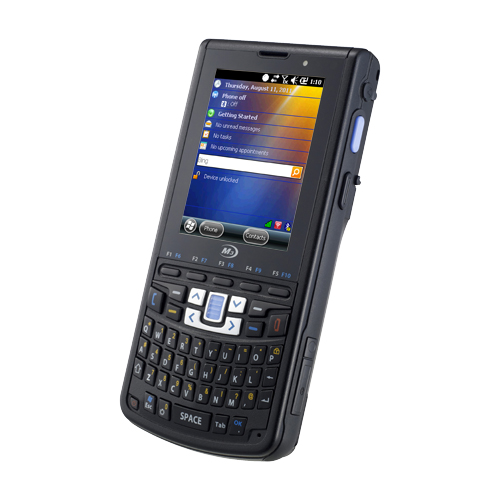

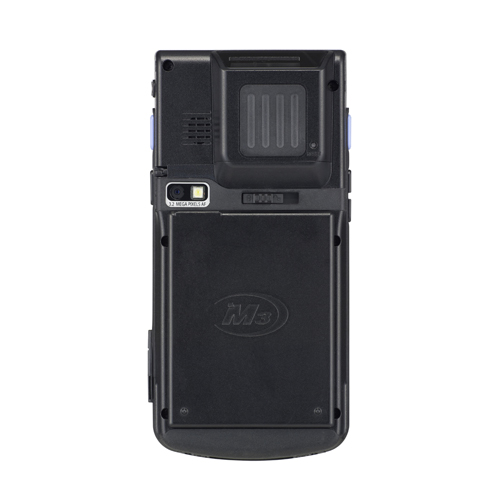

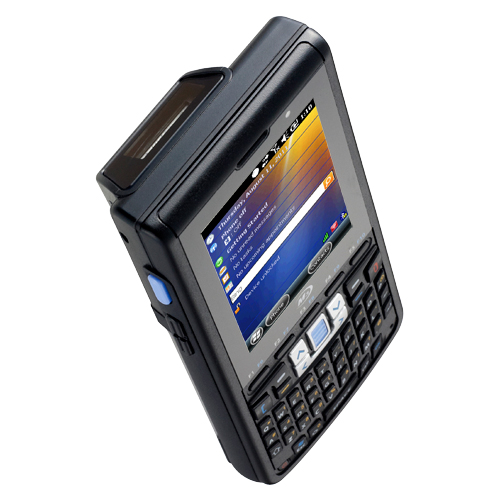

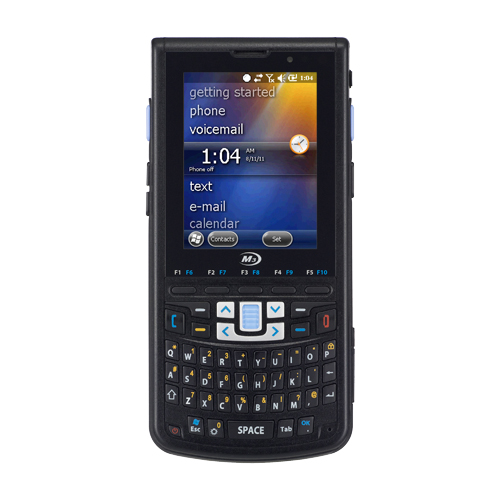

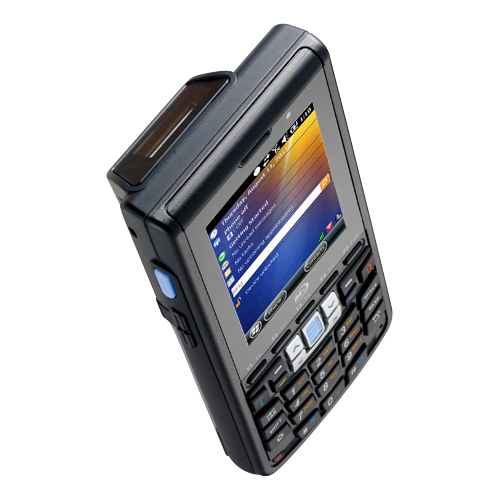

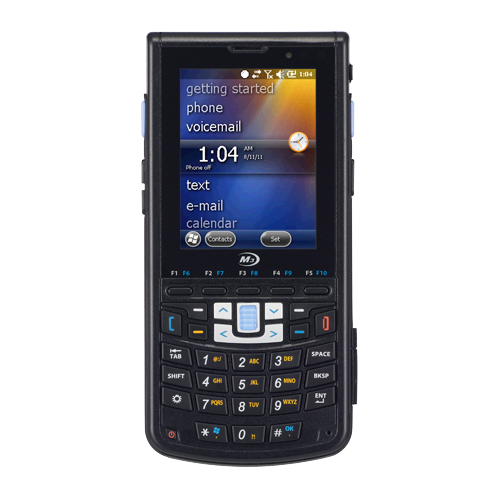

M3 SMART
Ultra light and Slim PDA
  • - Samsung S5PC100 833 MHz
    - Window CE 6.0 / Windows Mobile 6.5
    - 1D / 2D Scanner
    - 3.2M Pixels Auto Focus Camera
    - Bluetooth Class II, v2.0 / v2.1 with EDR
    - WLAN IEEE 802.11 a/b/g
    - Smart Battery
    - Illuminance Sensor, Gyro Sensor

  • tabbutton1

    • Multi OS Support
      M3 SMART supports Windows Embedded Handheld 6.5 and Windows Embedded CE 6.0 both of them
    • Cortex-A8 833MHz
      Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access.
    • 1D, 2D Scanner
      Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
    • 3.2M Pixels AF Camera
      High resolution and auto focused functionality capture clear images of product and/or documentation.
    • Smart Battery (Li-Ion 3.7V 2,200mA / 4,400mA)
      M3 SMART's smart battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts.
    • Slim & Light
      M3 SMART is a slim and light but rugged. It can be used for ticketing and/or asset management wherever the mobile device is needed.
    • Endurance for temperature
      M3 SMART can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 80 degree. It will guarantee the normal function at any temperature of working environment.
    • IP 54 Sealing, 1.2m Drop
      M3 SMART is suitable to use in a tough environment withstands drops from 1.2m and protects against dust and water.
    • Solutions
      Terminal Emulation : Wavelink, Softogo, Naurtech
      Mobile Management : Wavelink, Soti
  • tabbutton1

      Physical Characteristics
      DIMENSION (W x H x D)
      Millimeters 69 x 141.6 x 19.7
      Inches 2.7 x 5.5 x 0.7
      WEIGHT (incl. battery)
      Grams 222
      Ounces 7.8
      DISPLAY
      Size 2.8"
      Type QVGA TFT LCD
      Pixels 240 X 320
      BATTERY
      Type Smart Battery
      Cell Lithium-ion
      Power 3.7 V, 2,200 mA
      3.7 V, 4,400 mA(Extended)
      Performance Characteristics
      MULTI-PROCESSOR
      CPU 833 MHz
      Radio ARM9 series
      OS
      Windows Mobile 6.5
      Windows CE 6.0
      MEMORY
      RAM 256 MB
      ROM 512 MB (CE) / 1 GB (WM)
      Card Slot Micro SD, up to 32 GB
      USB INTERFACE
      Host 1.1
      Client 2.0
      Sensors
      Illuminance, Gyro
      User Environment
      TEMPERATURE
      Operating -20 to 60 ℃ / -4 to 140 ℉
      Storing -30 to 80 ℃ / -22 to 176 ℉
      HUMIDITY
      93% non-condensing
      Tumble Test
      Drop Test
      1.2 m / 4 ft.
      IP Rating
      IP54
      Wireless Radio Options
      WWAN
      2G Network
      (CDMA 1x/EVDO)
      3G Network
      (UMTS/HSPA+)
      800/850/1700/1900 MHz(HSPA+)
      WLAN
      Standard IEEE 802.11
      Bandwidth a/b/g
      Security WEP, WPA, WPA2, TKIP, AES, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP- TLS, PEAP-MSCHAPv2, LEAP, CCXv4
      BLUETOOTH
      Class Class II
      Version 2.0(WM)
      2.1(CE)
      RFID
      Frequency
      Standard
      GPS
      AGPS
      General Options
      SCANNER
      1D O
      2D O
      Long range
      CAMERA
      Pixels 3.2 M
      Focus Auto Focus
      KEYPAD
      Alpha-Numeric 39 key
      Qwerty 51 key
      Azerty 51 key

      * The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
