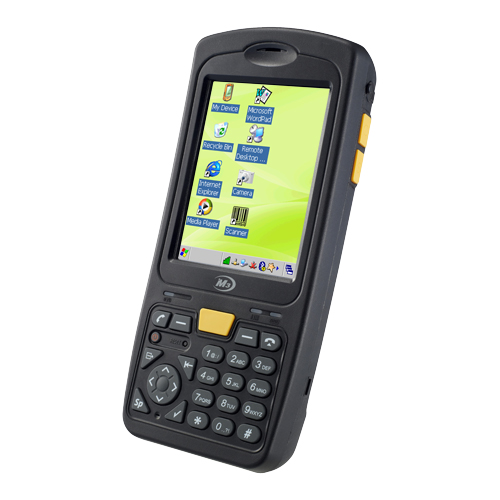

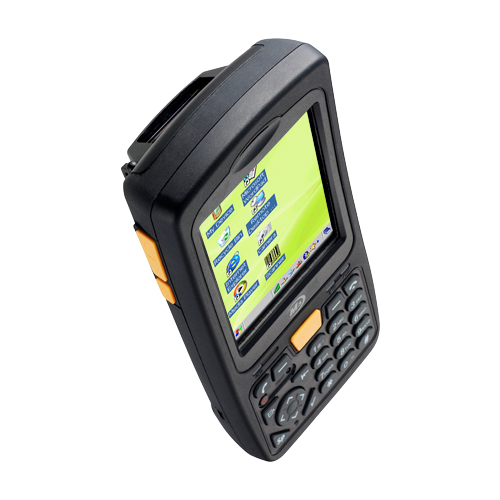

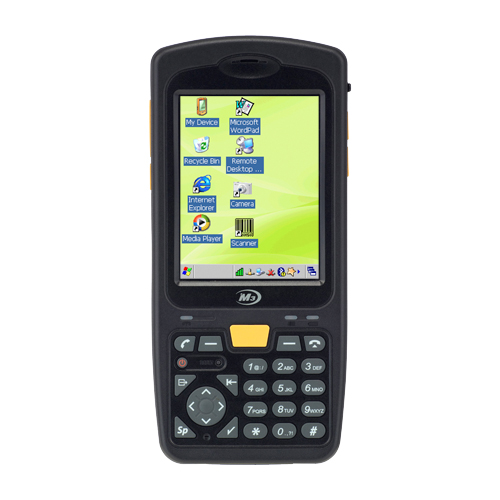

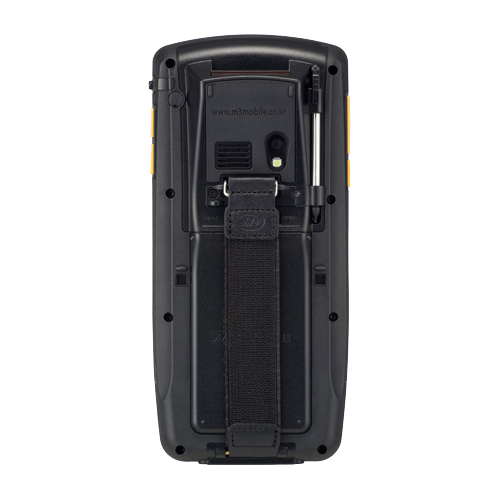

M3 T
Scanning Intensive PDA
  • - PXA-320 806 MHz
    - Windows CE 5.0
    - 1D / 2D Scanner
    - 3.0M Pixels Auto Focus Camera
    - Bluetooth Class II, v2.0 with EDR
    - WLAN IEEE 802.11 a/b/g/n
    - IP65 Sealing, 1.8m Drop
    - Smart Battery

  • tabbutton1

    • Windows CE 5.0
      Windows CE 5.0 operating system which is familiar to handheld computer users ensuring easy integration and intuitive operation.
    • Marvell PXA-320 806MHz
      Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access.
    • 1D, 2D Scanner
      Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
    • 3.0M Pixels AF Camera
      High resolution and auto focused functionality capture clear images of product and/or documents.
    • Battery (Li-Ion 3.7V 2,700mA / 5,200mA)
      M3 T's smart battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts.
    • External Micro SD
      Micro SD is small but power storage device. One of the most widely used storage in mobile devices nowadays.
    • Scan button
      Ergonomic design Scan button which is located in front panel of the M3 T makes your work easier and more convenient.
    • Endurance for temperature
      M3 T can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 70 degree. It will guarantee the normal function at any temperature of working environment.
    • IP 65 Sealing, 1.8m Drop
      M3 T is suitable to use in a tough environment withstands drops from 1.8m and protects against dust and water.
    • Solutions
      Terminal Emulation : Wavelink, Softogo
      Mobile Management : Wavelink, Soti

  • tabbutton1

      Physical Characteristics
      DIMENSION (W x H x D)
      Millimeters 77 x 168.8 x 28
      Inches 3.0 x 6.6 x 1.1
      WEIGHT (incl. battery)
      Grams 378
      Ounces 13.3
      DISPLAY
      Size 3.5"
      Type QVGA TFT LCD / VGA (optional)
      Pixels 240 X 320 / 480 x 640 (optional)
      BATTERY
      Type Smart Battery
      Cell Lithium-ion
      Power 3.7 V, 2,700 mA
      3.7 V, 4,800 mA (Extended)
      3.7 V, 5,200 mA (Optional)
      Performance Characteristics
      MULTI-PROCESSOR
      CPU Marvell Xscale PXA-320 806 MHz
      Radio ARM11
      OS
      Windows CE 5.0
      MEMORY
      RAM 256 MB (plus up to 512MB)
      ROM 1 GB
      Card Slot Micro SD, up to 32 GB
      USB INTERFACE
      Host 1.1 / 2.0 (Optional)
      Client 1.1 / 2.0 (Optional)
      User Environment
      TEMPERATURE
      Operating -20 to 60 ℃ / -4 to 140 ℉
      Storing -30 to 70 ℃ / -22 to 158 ℉
      HUMIDITY
      93％ non-condensing
      Tumble Test
      Drop Test
      1.8 m / 6 ft.
      IP Rating
      IP65
      Wireless Radio Options
      WWAN
      2G Network
      (GSM/GPRS/EDGE)
      2G Network
      (CDMA 1x/EVDO)
      3G Network
      (HSDPA) - only available in Korea      		 2100 MHz
      WLAN
      Standard IEEE 802.11
      Bandwidth a/b/g/n
      Security WEP, WPA, WPA2, TKIP, AES, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP- TLS, PEAP-MSCHAPv2, LEAP, CCXv4
      BLUETOOTH
      Class Class II
      Version 2.0 (with EDR)
      RFID
      Frequency N/A
      Standard N/A
      GPS
      AGPS
      General Options
      SCANNER
      1D O
      2D O
      Long range
      CAMERA
      Pixels 3.0 M
      Focus Auto Focus
      KEYPAD
      Alpha-Numeric 31 key
      Qwerty
      Azerty

      * The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
